Complete Heat-Treatment Parts Cleaning

— All Under Vacuum.

BIOVA

Pre-cleaning, final immersion cleaning, reduced-pressure vapor rinsing

and vacuum drying — all four stages fully automated in a single chamber.

Download Brochure（Free）
Contact Us
PROBLEM

Sound Familiar?

Common Challenges in Heat-Treatment Line Cleaning



悩むイメージ

Heat discoloration and oxide scale, residual contamination in blind holes, solvent safety management, running costs — these are the issues we hear about most often from plant engineers



54

Inconsistent Cleaning Quality

Heat discoloration and oxide scale remain,

triggering quality complaints in downstream processes.

55

Blind Holes Remain Dirty

Contaminants cannot be fully removed from complex geometries or parts that stick together.
56

Safety and Environmental Management Is Difficult

Managing ignition risk and preventing solvent emissions to the atmosphere are constant headaches.
57

Too Costly, Too Labor-Intensive

Solvent consumption and thermal oil replacement drive up running costs and maintenance workload.
SOLUTION

Problem Solved — With BIOVA.

電球　アイコン

Four stages, one chamber, fully automated vacuum cleaning

— delivering cleaning performance, safety and cost efficiency all at the highest level.

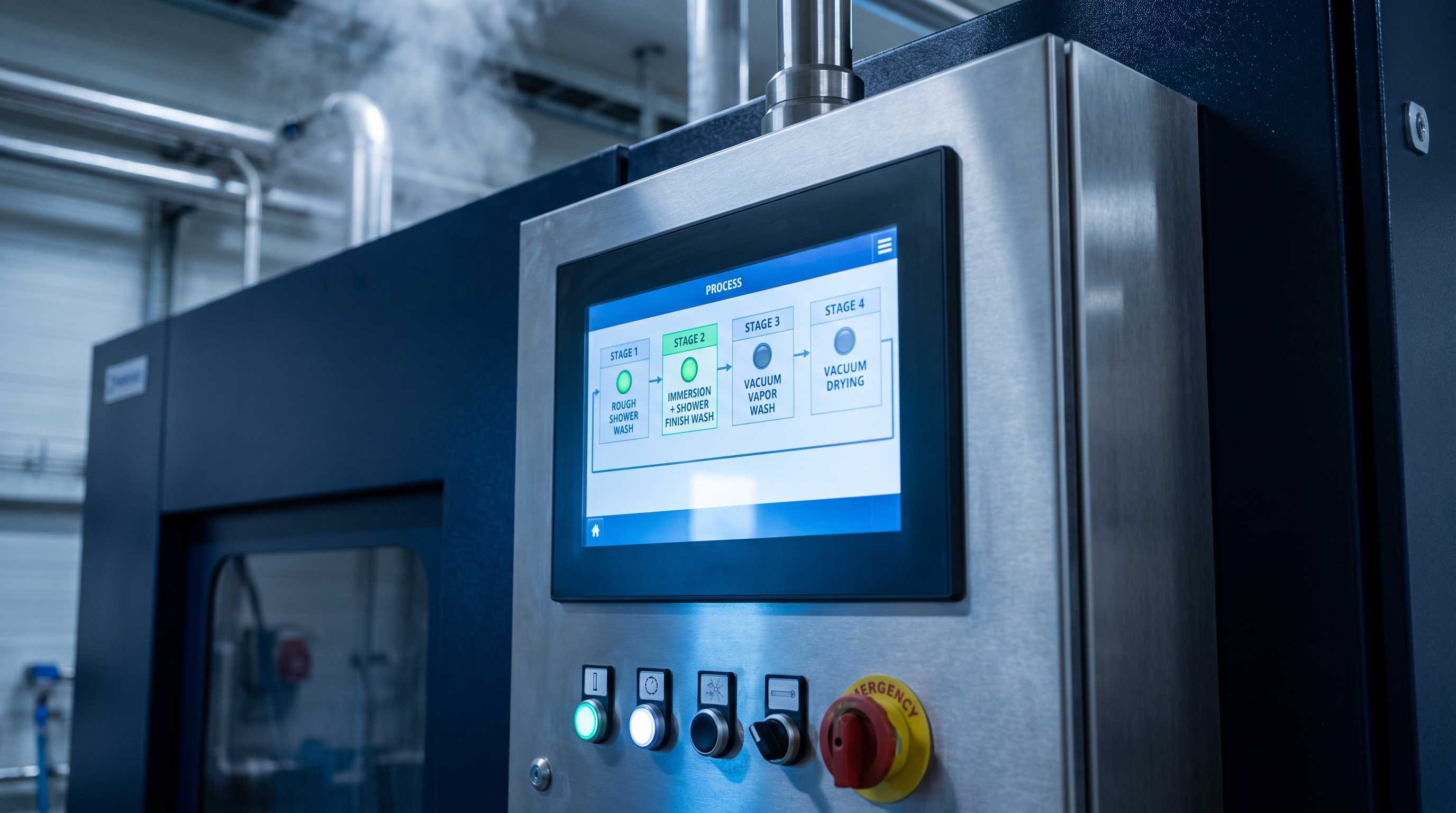

1

Four Stages, One Chamber, Fully Automatic

Pre-shower cleaning → final solvent shower fill and immersion cleaning → reduced-pressure vapor rinsing → vacuum drying, all processed automatically within a single chamber.

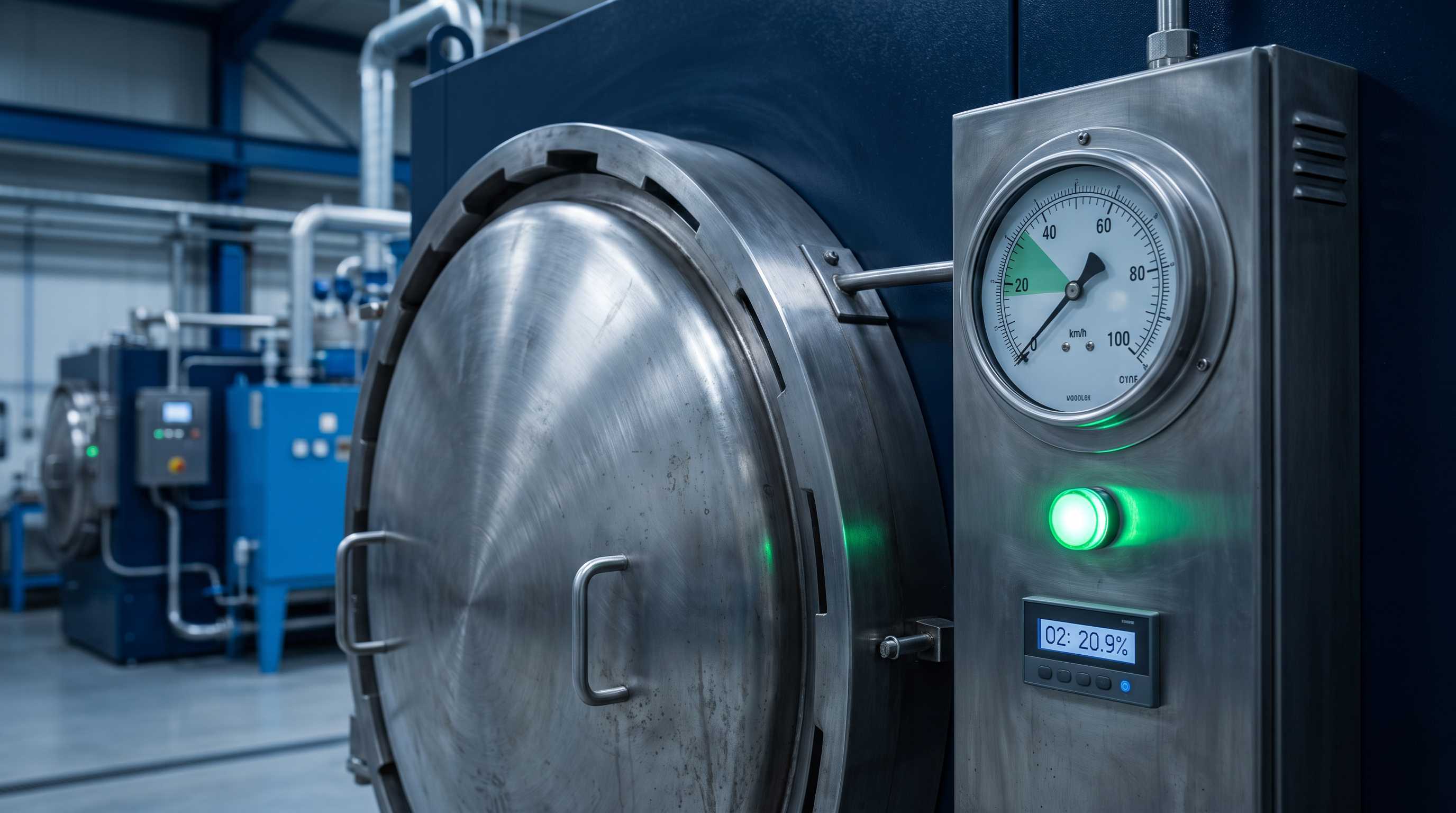

2

Outstanding Safety

Every stage runs under vacuum, so oxygen concentration stays low and the process is inherently safe. Nitrogen is used only for emergency fire suppression.

3

Cleans Blind Holes and Nested Parts

Because the solvent never contacts the atmosphere, heated cleaning is possible. Repeated vacuum/re-pressurization cycles during immersion cleaning remove contaminants even from complex geometries

4

Low Running Costs

A two-stage configuration of liquid-ring vacuum pump plus mechanical booster pump achieves a high solvent recovery rate and cuts solvent consumption.

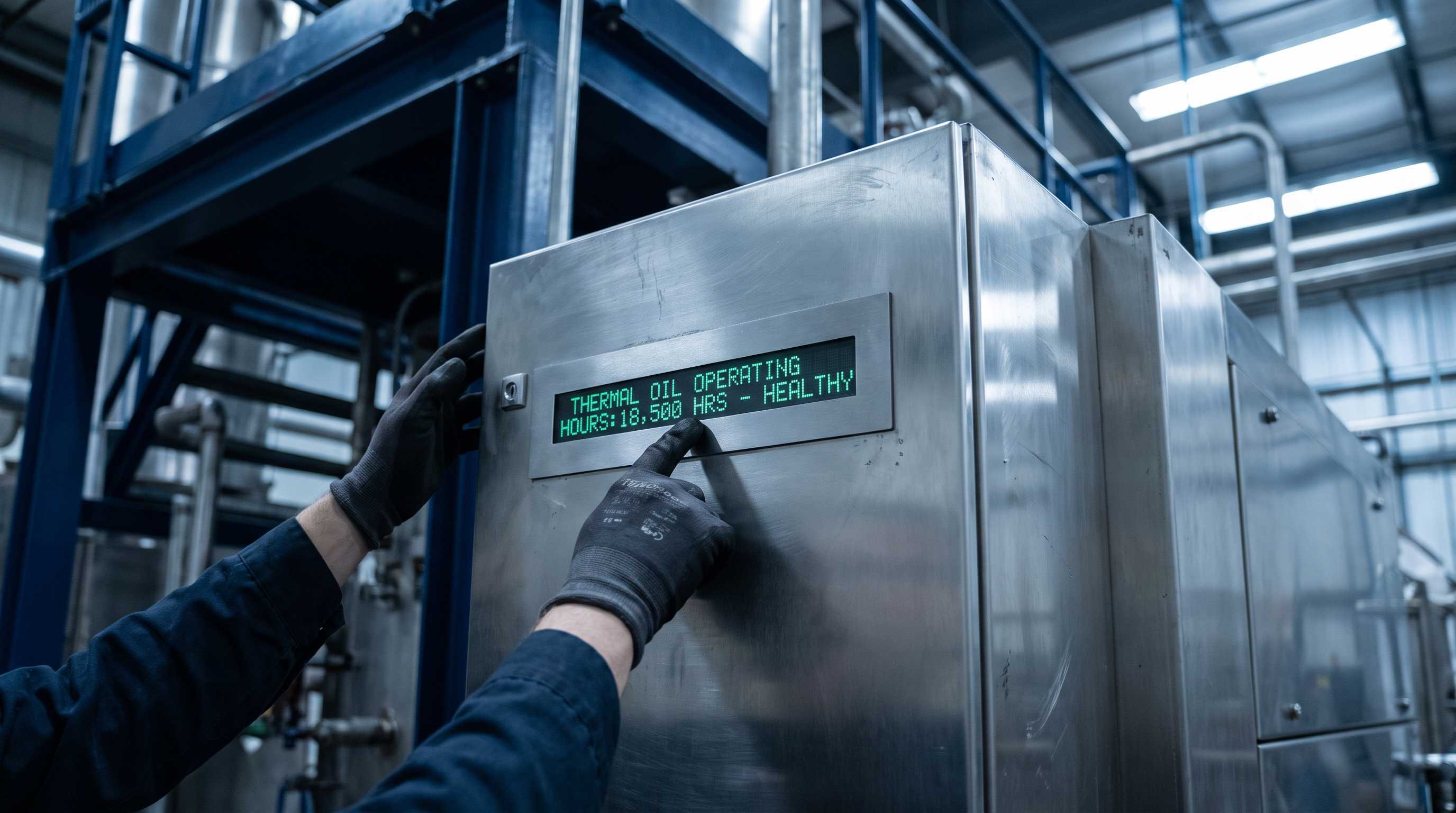

5

Low Maintenance, High Reliability

The vacuum pump is maintenance-free, and the thermal oil lasts 6,000 hours — three to four times longer than competing systems — dramatically reducing downtime.

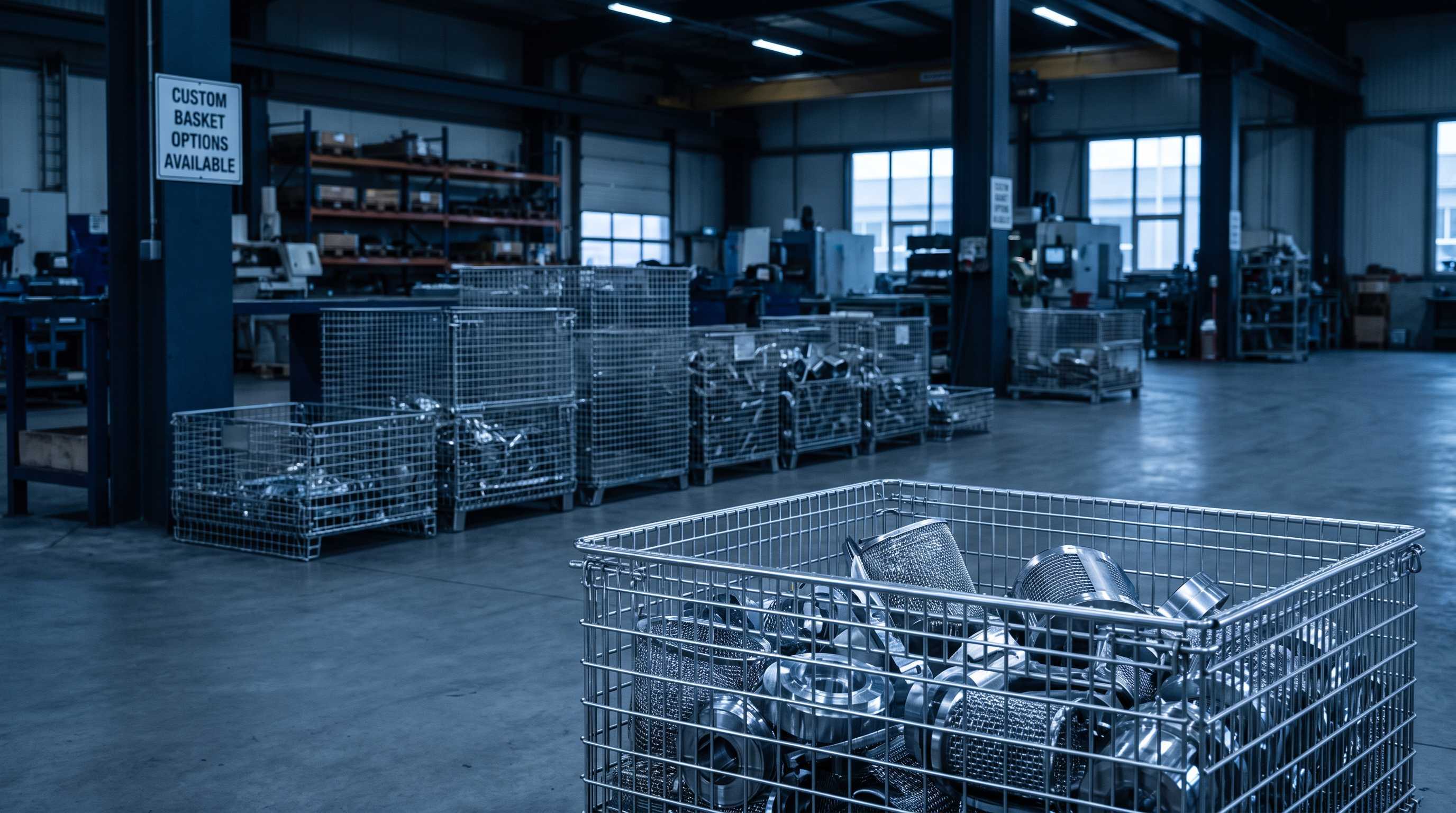

6

Flexible Customization

Basket size, final cleaning method (jet flow, swirl, bubbling or ultrasonic) and heating method can all be tailored to your requirements.
PROCESS

How the Single-Chamber Cleaning System Works

All four stages run seamlessly and fully automatically inside one chamber.

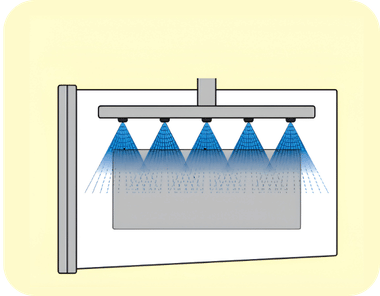

① Pre-Cleaning

Shower cleaning with pre-wash solvent



1

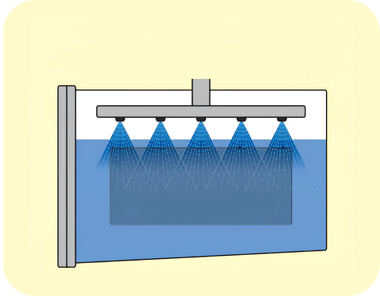

② Final Cleaning

Final-solvent shower fill + immersion cleaning



2

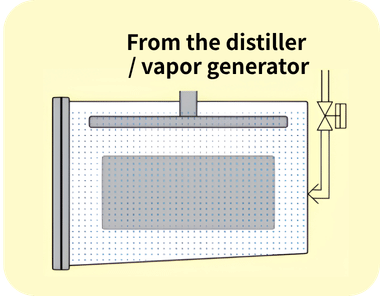

③ Rinsing & Heating

Reduced-pressure vapor rinsing



Rinsing & Heating image

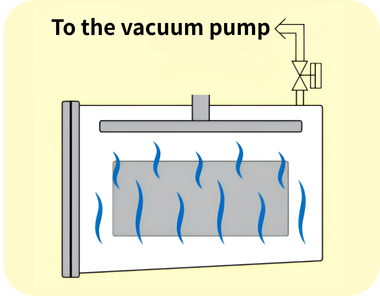

④ Drying

Vacuum drying



Drying image

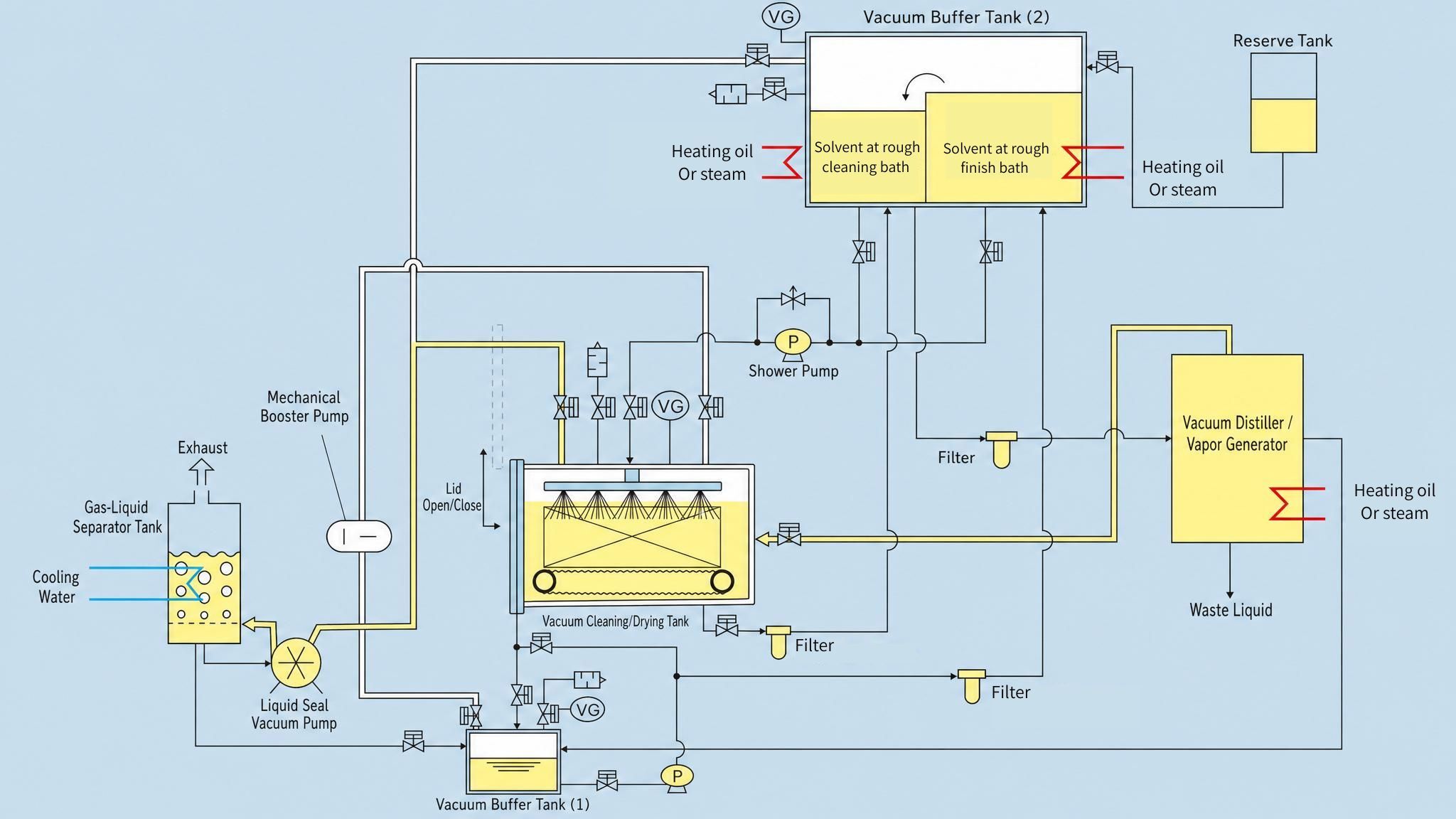

System Flow Diagram

BIOVA system flow diagram (vacuum buffer tank, liquid-ring vacuum pump, vacuum distillation unit)

Sample Cycle (One Batch)

Process StepTime Required
Basket loading0.5 min
Lid closing0.2 min
Evacuation0.5 min
Pre-wash solvent shower cleaning1.0 min (timer)
Pre-wash solvent draining1.5 min
Final solvent shower filling2.5 min
Final solvent immersion cleaning1.0 min (timer)
Final solvent draining4.7 min
Evacuation1.0 min
Reduced-pressure vapor rinsing5.0 min (timer)
Liquid drain-off0.5 min
Vacuum drying2.2 min (timer)
Venting / purging3.1 min
Vacuum release, lid opening and unloading1.3 min
Total25.0 min
TARGET

Parts We Clean

A large basket with a capacity of up to 1,000 kg allows heavy post-heat-treatment components to be cleaned in a single batch.



* Custom sizes are also available. For heavily contaminated workpieces, we recommend adding a distillation unit.

Category
Example Parts
Heat-Treated Parts

Gears, shafts, bearings and various steel components after carburizing, nitriding, or quenching and tempering

Automotive Components
Drivetrain parts / engine parts / forged parts / chassis and suspension parts
Machined Metal Parts
Large castings and forgings / industrial machinery parts / machine tool parts
Other Heavy Components
Complex-shaped parts with blind holes, and workpieces that tend to stick together
SPECIFICATIONS

Specifications

Three models, differentiated by basket size.

Choose between a return-type or pass-through-type layout.

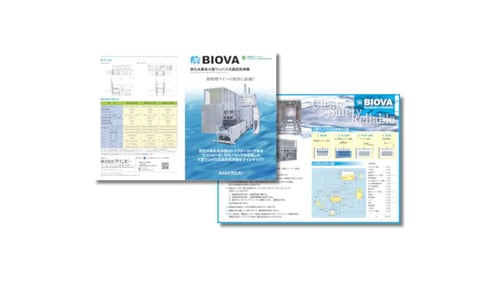

* Please download the catalog for full specifications.

Biova 表紙ぼかし

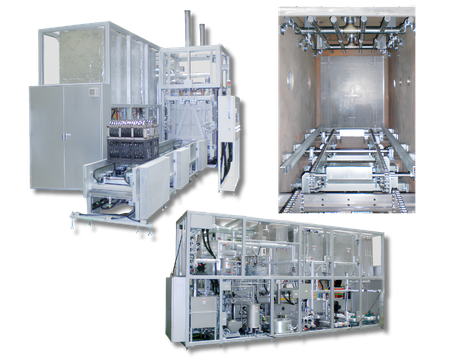

Biova 集合写真
Model BIOVA-6195 BIOVA-61122 BIOVA-76122
Basket size (W x D x H) mm 610 x 950 x 610 610 x 1220 x 700 760 x 1220 x 760
Max. load weight 600 kg 700 kg 1000 kg
Cycle time 20 min 25 min 30 min
Shower pump capacity *1 450 L/min 2.2 kW 500 L/min 3 kW 600 L/min 4 kW
Distillation capacity (also vapor capacity) 400 L/h 400 L/h 500 L/h
Solvent volume 1900 L 2500 L 3300 L
Thermal oil volume 100 L 140 L 180 L
Machine dimensions
Return type (W x D x H) mm 2500 × 4500 × 4500 2500 × 4800 × 4500 2650 × 5200 × 4700
Pass-through type (W x D x H) mm 3000 × 6400 × 4500 3000 × 6800 × 4500 3300 × 7000 × 4700

*1 These figures apply to Class 2 petroleum solvents under the Japanese Fire Service Act. For Class 3 petroleum solvents, multiply by 0.7–0.8.

SOLVENT

A Matched Hydrocarbon Cleaning Solvent

Composition: isododecane / Flash point: 48°C (118°F) / Colorless, transparent and low-odor. Suitable for a wide range of workpieces.





J CLEAN D English sp
SUPPORT

Global Support Network

Group companies in Japan, China, Thailand, Indonesia and Mexico handle sales, production and after-sales service. Working together with JFE Shoji Electronics' bases across Asia, we cover the whole of Southeast Asia.
Senjo_kyoten_en-1
WHY JFE

Why Choose JFE Shoji Electronics

company-logo-en-tr



We support you end to end — from cleaning trials and equipment selection through installation and after-sales service.

30+ Years of Experience

Over 30 years in the cleaning process business,

both in Japan and overseas

500+ Customers, 1,000+ Machines

We have served approximately 500 companies and delivered more than 1,000 cleaning machines to date

One-Stop Service

Cleaning trials, equipment selection, installation

and after-sales service, all handled by a single partner

ISO Certified

We hold ISO certification for our quality management system.
ABOUT CLEANVY

About Cleanvy Corporation

 Company name

 Cleanvy Corporation
Head office  3011-3 Shiga, Suwa City, Nagano 392-0012, Japan
Business  Design, manufacture and sale of hydrocarbon, aqueous and fluorinated cleaning machines, distillation/recovery units, and electrolytic cleaning machines
Domestic locations  Head office (Nagano), Nagoya, Osaka, North Kanto
Overseas locations
  China (Shanghai, Shenzhen, Dalian), Thailand, Indonesia, Mexico



CLEANVY LOGO(800x475)-1
No.1 in Shipments
The No.1 manufacturer by domestic shipments of hydrocarbon cleaning machines in Japan
3,400+ Units Delivered
An extensive delivery record in Japan and overseas
5 Excellence Awards
for New Products
Awarded by the Japan Industrial Conference on Cleaning (JICC)
6,000 h
Thermal Oil Life
Three to four times longer than competing systems, dramatically reducing downtime
